50°6° Tables
The 50°6° Tables are 3 individually unique hi-top tables that were created through a jigging and tacking system. The system was designed such that a single fabricator using stock material of a pre-determined quantity and size to create a visually complex functional object within tight budget limitations.
Client: Private Client
Size: Object
Status: Completed 2011

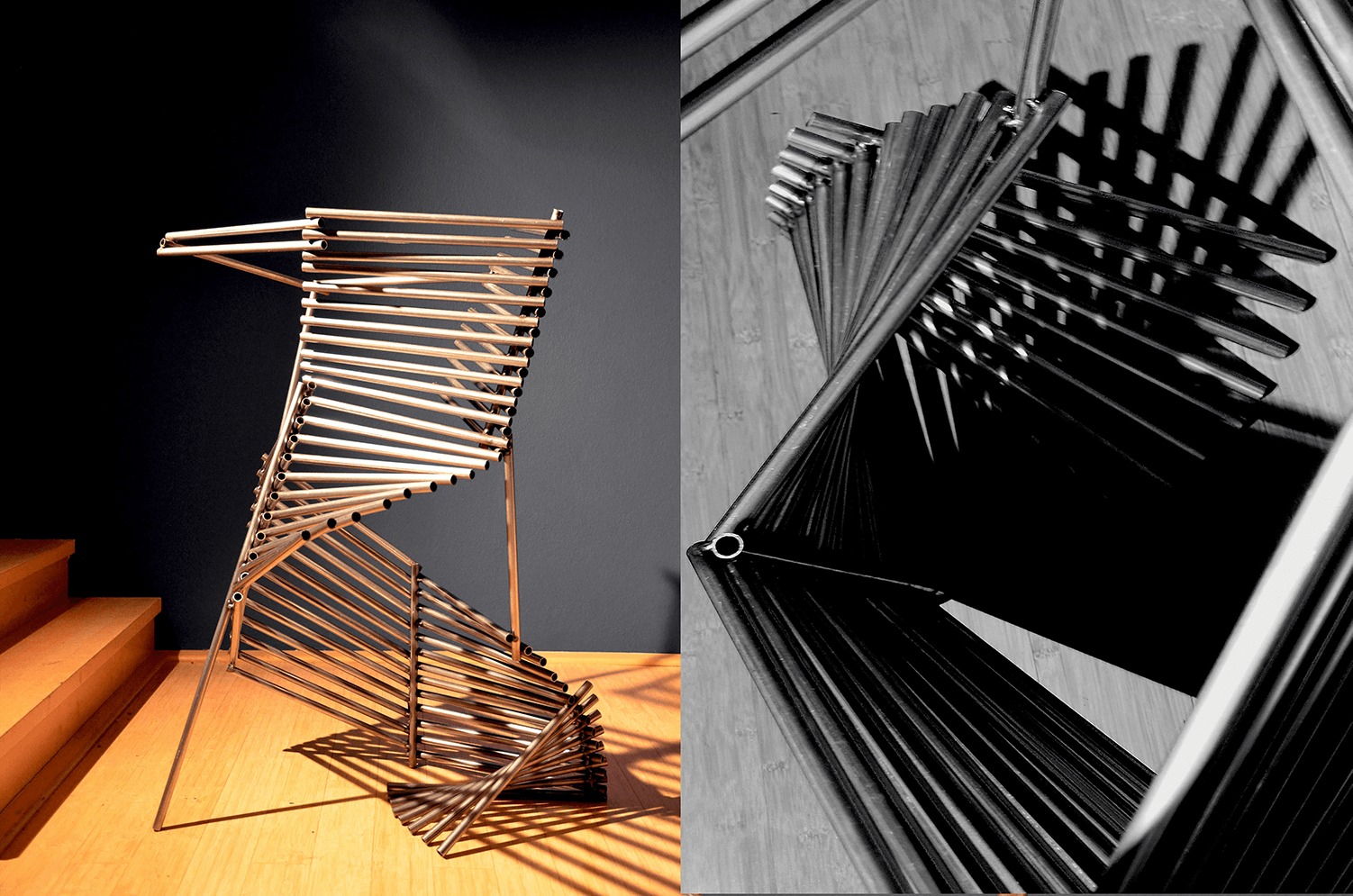

For each table, less than 100 sections of pipe were assembled to form each table such that it reached a height of 42” and a weight less than 75 lbs. The individual stock pieces were welded according to a folding logic inspired by oragami techniques. Using the 3 custom jigs, unique V-shaped angled components were fashioned. Those components were then slotted into one another via the jig’s spacing system to reach the desired height. The two part process produced 3 different spiraling towers of steel that were then capped with a piece of custom cut glass to fit the geometry of the top most plane.
The tables were designed for and featured in Angles of Incidence in Köln, Germany (2012), and were also featured at the Nigeria House during the Summer Olympics in London 2012.
Lead Fabricator: Elyse Agnello
